CO2 Laser Pulse Calibration Test: Troubleshooting Guide for Laser Cutter and Engraver Users
If you operate a CO2 laser cutter or engraver, performing a CO2 laser pulse calibration test is a key step to ensure your machine operates accurately and produces quality cuts or engravings. Calibration tests help diagnose issues like inconsistent power, misaligned pulses, or timing errors that directly impact your work. However, troubleshooting calibration problems can be challenging due to variations in laser machines, controllers, software, and firmware.
This article provides a practical, comprehensive troubleshooting guide to help laser users identify common causes and solutions for calibration issues. Follow this structured approach to run effective pulse calibration tests safely and optimize your laser system’s performance.
---

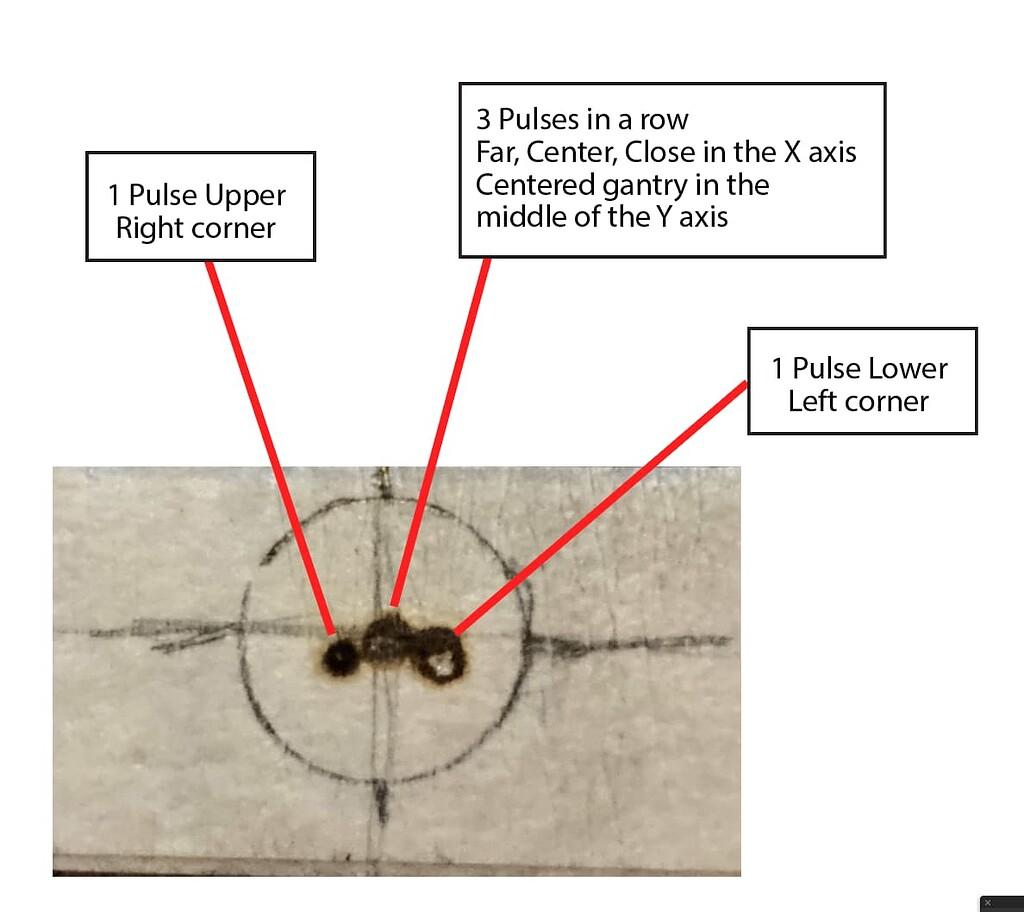

Understanding the CO2 Laser Pulse Calibration Test
What is a CO2 Laser Pulse Calibration Test?
A CO2 laser pulse calibration test verifies the timing and power output of laser pulses during operation. Essentially, it confirms that the laser is firing correctly and with consistent energy for the duration you specify. Calibration ensures precision in cutting and engraving, which directly affects finish quality and repeatability.
Why Do Calibration Problems Occur?
Calibration issues can manifest in multiple ways, including:
- Uneven cut depth or engraving darkness.
- Missed or weak laser pulses.
- Irregular power output throughout the job.
- Timing mismatch between the laser and motion system.
These symptoms vary widely depending on your machine model, the controller type (like Trocen, Ruida, or GCode-based systems), software, and firmware versions. Understanding these variables is critical before attempting adjustments.
---
Common Causes of Calibration Problems
Before fixing issues, it’s important to consider potential root causes:
1. Laser Tube Stability and Aging
Older laser tubes may exhibit pulse power instability, which affects calibration consistency. Tube health can degrade with use, changing the pulse energy output over time.
2. Power Supply and Electrical Issues
Irregular voltage, unstable power supplies, or faulty wiring may cause inconsistent pulses.
3. Controller Settings and Firmware Configurations
The timing parameters for pulse length and synchronization with motion drivers are often set in firmware or machine parameters. Incorrect settings lead to calibration errors.
4. Software Generating Pulse Commands
Different laser software tools create pulse commands differently. Compatibility issues or incorrect software configurations can cause pulses to misfire or deviate.
5. Laser Head Alignment and Optical Components
Mechanical misalignment or dirty optics may cause variations in the effective power delivered to the workpiece.
---
Step-by-Step Troubleshooting for CO2 Laser Pulse Calibration Test
Step 1: Safety First
- Always ensure the machine is powered off when inspecting internal components.
- Wear appropriate laser safety eyewear during test firing.
- Follow the manufacturer's safety guidelines strictly to avoid injury or equipment damage.
Step 2: Conduct a Baseline Calibration Test
- Use your machine’s recommended calibration routine or software pulse test function.
- Document the output and note any irregularities such as inconsistent pulse duration or power fluctuations.
Step 3: Check Laser Tube and Power Supply
- Visually inspect the power supply and connections for signs of wear or damage.
- Verify that power supply output voltages are stable (consult your machine manual or manufacturer for specifications).
- If tube aging is suspected, consider professional testing or replacement.
Step 4: Inspect Controller and Parameter Settings
- Review current pulse-related settings in your controller.
- Confirm that pulse width, frequency, and timing parameters align with your laser tube specifications.
- If possible, reset to factory defaults and rerun the calibration to see if issues persist.
Step 5: Evaluate Software and Firmware Compatibility
- Update your laser software and firmware to the latest approved versions if available.
- Review the post-processor or driver configurations to ensure pulse commands are generated correctly.
- Test with a secondary software tool if feasible to isolate software issues.
Step 6: Examine Mechanical and Optical Components
- Check the laser head alignment carefully and realign if necessary.
- Clean all lenses and mirrors using appropriate materials as recommended by your laser manufacturer.
- Misalignment or dirt can cause apparent pulse energy variation.
Step 7: Perform a Repeat Calibration Test
- After applying corrections, run another pulse calibration test.
- Compare results to baseline to verify improvements.
---
Diagnostic Checklist for CO2 Laser Pulse Calibration Issues
| Checklist Item | Completed (✓/✗) | Notes |
|-------------------------------------------|-----------------|------------------------|
| Verified laser tube condition | | |
| Inspected and confirmed power supply stability | | |
| Checked and adjusted controller pulse parameters | | |
| Updated and reviewed software and firmware | | |
| Ensured software is correctly generating pulses | | |
| Inspected optical components for cleanliness and alignment | | |
| Performed pulse calibration test and documented results | | |
---
Frequently Asked Questions (FAQ)
Q1: How often should I perform a CO2 laser pulse calibration test?
A: It’s best practice to perform a pulse calibration test regularly—such as monthly—or after any major maintenance or hardware changes. Frequent testing ensures your laser continues to operate accurately.
Q2: My laser pulses are weak or inconsistent. Could software settings alone cause this?
A: Yes, faulty software-generated commands or incorrect controller settings can cause inconsistent pulses. However, hardware factors such as tube degradation or power supply instability are common causes as well.
Q3: Can I calibrate pulses on any CO2 laser cutter or engraver?
A: Most CO2 laser systems offer some form of pulse calibration, but procedure and options vary by manufacturer and controller. Always refer to your machine documentation and confirm with the manufacturer before proceeding.
Q4: What safety precautions should I take during the pulse calibration test?
A: Always wear laser safety goggles specifically rated for the wavelength of your CO2 laser (typically 10.6 microns). Avoid direct or reflected beam exposure to skin and eyes. Keep all safety interlocks operational.
Q5: Could firmware updates fix calibration issues?
A: Yes, firmware updates sometimes resolve timing bugs or improve pulse control. However, always review update changelogs and test after updates to ensure compatibility.
---
Get Your Free Laser Files
Looking for free laser cutting and engraving files? Explore DESIGNEROOH to discover useful resources, laser-ready designs, and tools to improve your next project.
Explore Free Files at DESIGNEROOH →
Final Thoughts
The CO2 laser pulse calibration test is essential for maintaining optimal laser cutting and engraving performance. Given the variables between different machines, controllers, software, and firmware, troubleshooting requires methodical inspection of hardware and software components.
Always err on the side of caution when working with high-voltage laser equipment. Never bypass safety interlocks or follow unsafe electrical procedures. When in doubt, consult your laser cutter or engraver manufacturer for model-specific advice.
By carefully following the steps outlined in this article, you can identify and resolve the most common calibration problems, ensuring your CO2 laser system delivers precise, consistent results every time.
---
For further information or support, consider joining specialized laser user communities or forums relevant to your specific laser brand and model.
